Purpose

Automatic cardboard box making machine for fanfold corrugated cardboard WG8C1H4P4 is used in manufacturing enterprises of any level, enterprises providing special packaging services, using packaging of various sizes and designs. The equipment is designed to automate the packaging manufacturing process at your enterprise, to make it as simple and convenient as possible. With box making machine, you can manufacture any boxes for your products according to your requirements and the requirements of your customers.

Distinctive features

• Work with fanfold corrugated cardboard up to 2400 mm wide.
• Storage space for 4 types of corrugated cardboard.
• Simultaneous loading of up to 4 fanfold corrugated cardboard formats.
• The machine is equipped with 6 longitudinal and 1 transverse cutting and scoring units.
• Productivity 3-6 boxes per minute.
• 40 templates in the program for creating standard boxes.
• Function for manual creation and import of box templates.
• Optimization of cutting maps.
• High precision processing.
• The machine works with most types of corrugated cardboard.
• Automatic transverse and longitudinal creasing and cutting of cardboard according to the program.
• Used for serial and individual production of packaging.
• Possibility of separate use of the machine and its integration into a packaging line.
• Takes up little space and saves space in production.
• Intuitive control system based on industrial PC.
• It is possible to automate the process of manufacturing boxes, for example, by obtaining information about dimensions from a measuring station.
• The massive frame prevents vibrations and ensures increased processing precision.
• Complete production statistics and diagnostic system.
• Security systems in accordance with CE standards.

Design advantages

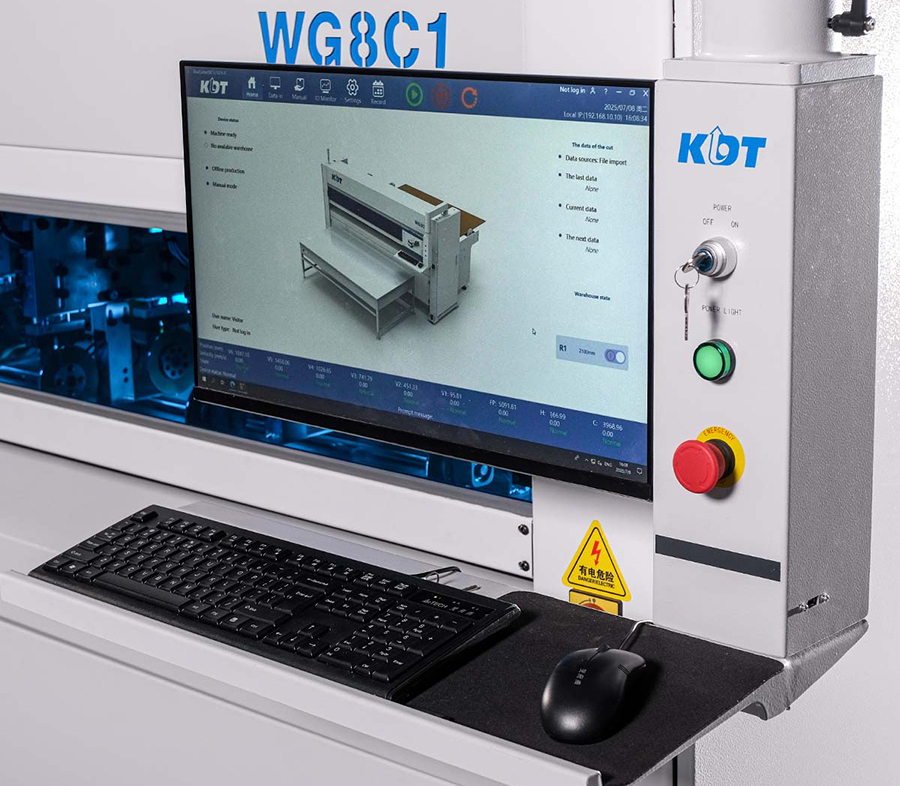

Intuitive control system based on industrial PC with touchscreen display and Windows OS. Complete production statistics and diagnostic system.

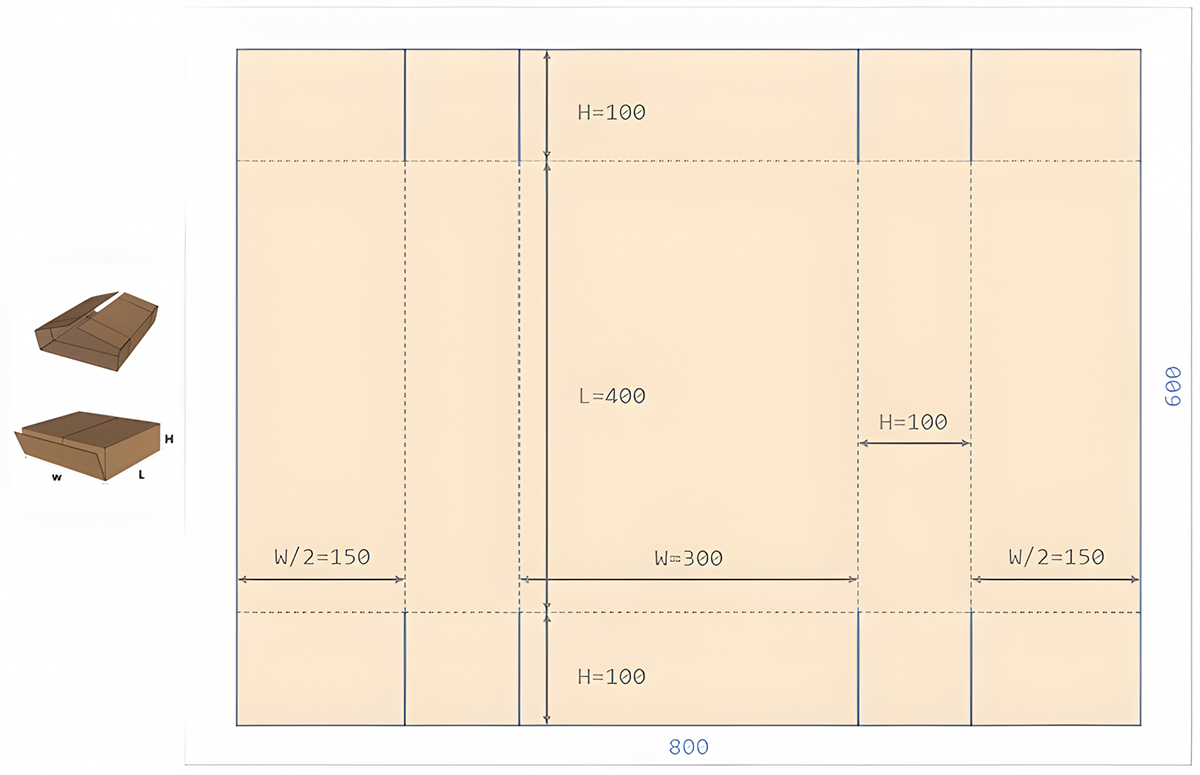

Built-in editor and box designer. 40 templates in the program for creating standard boxes, as well as their import.

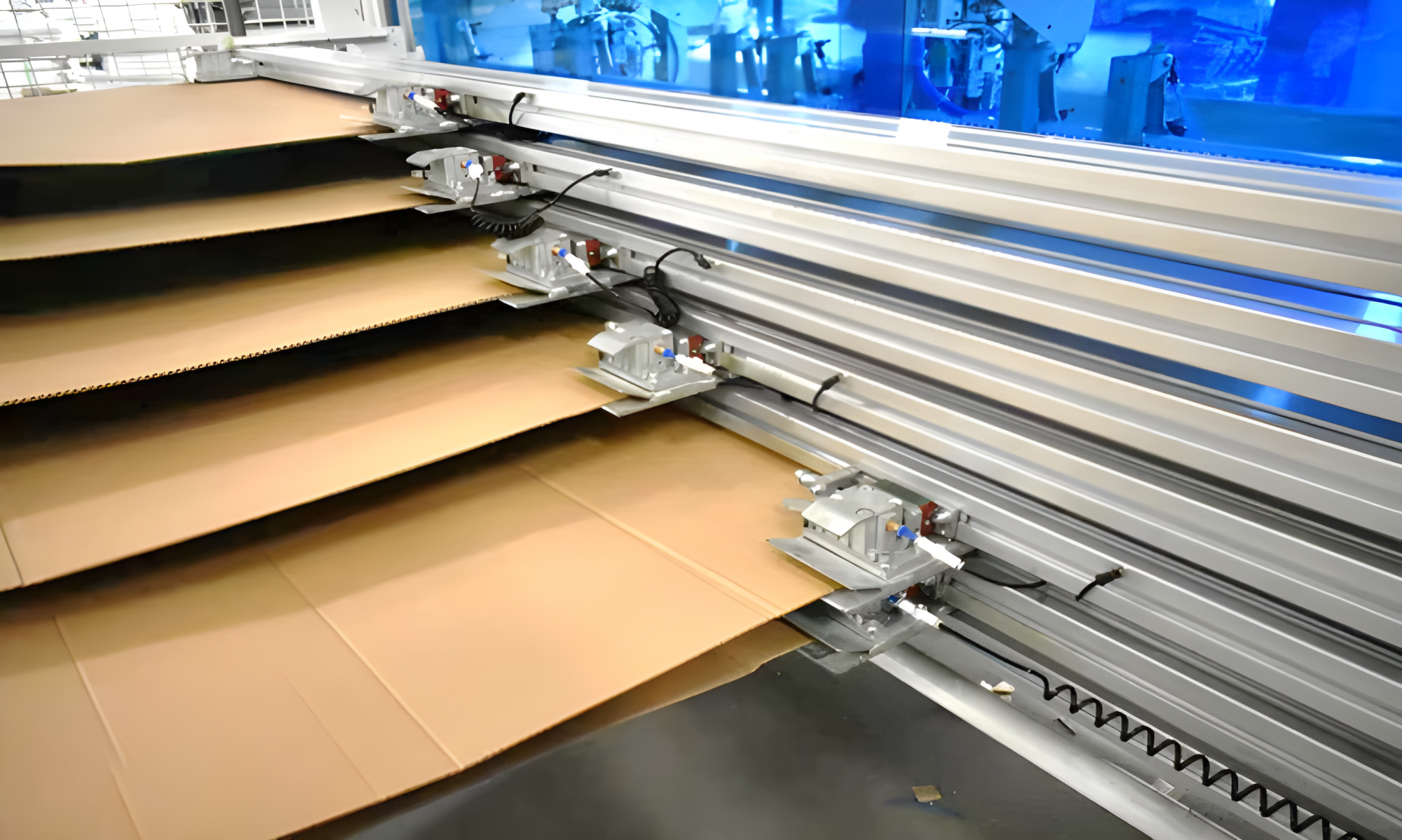

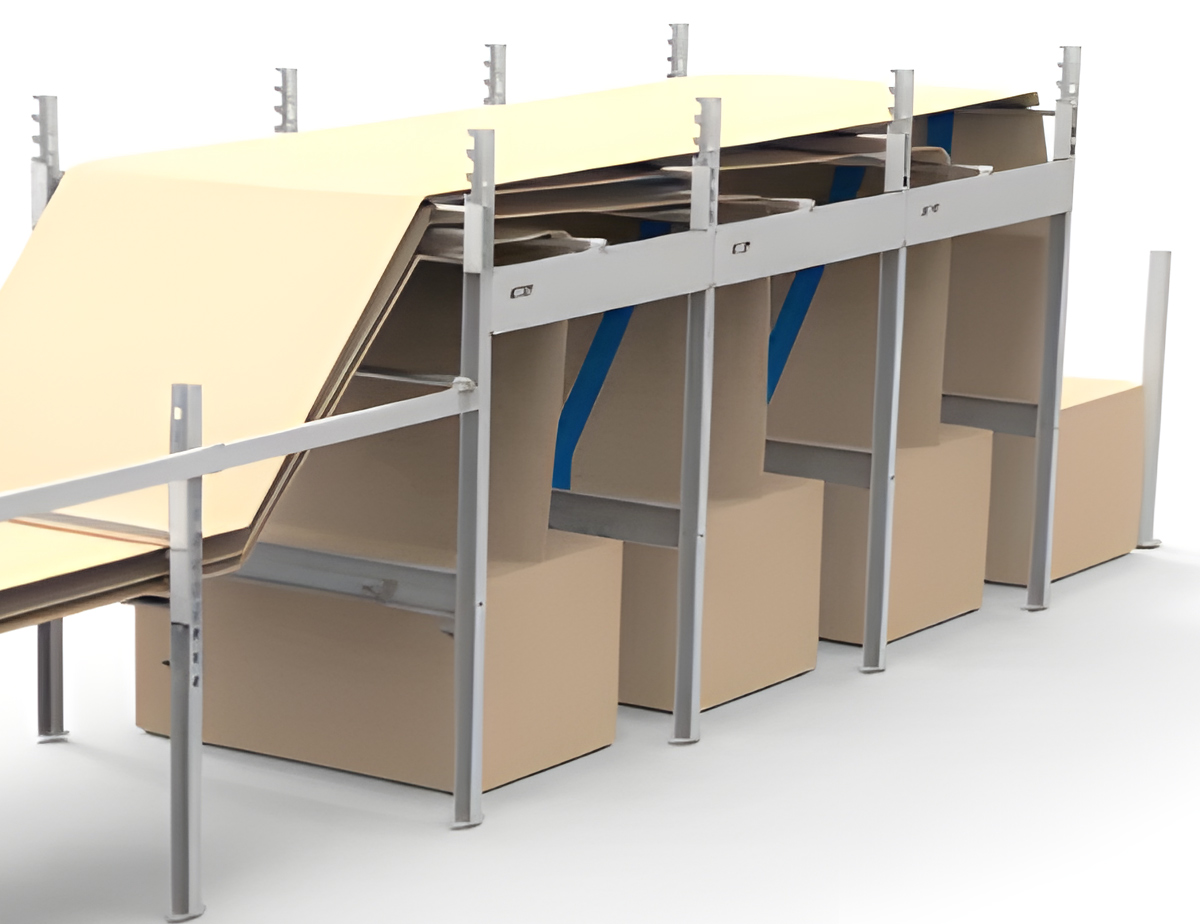

Special stand for storage and automatic feeding of fanfold corrugated cardboard for 4 places.

The machine software automatically calculates and selects the most appropriate format to minimize waste. Simultaneous loading of up to 4 corrugated cardboard formats.

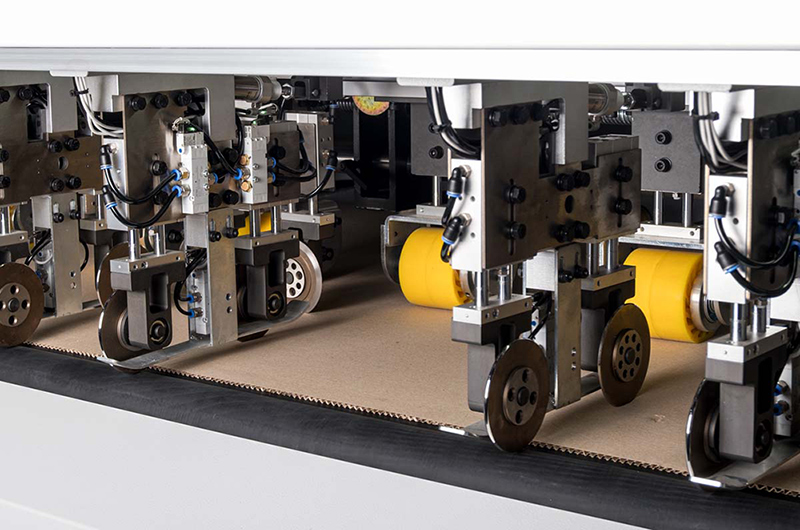

The machine has 6 longitudinal cutting and scoring units. Each pair of disk knives simultaneously cuts and scorers the future box in the longitudinal direction.

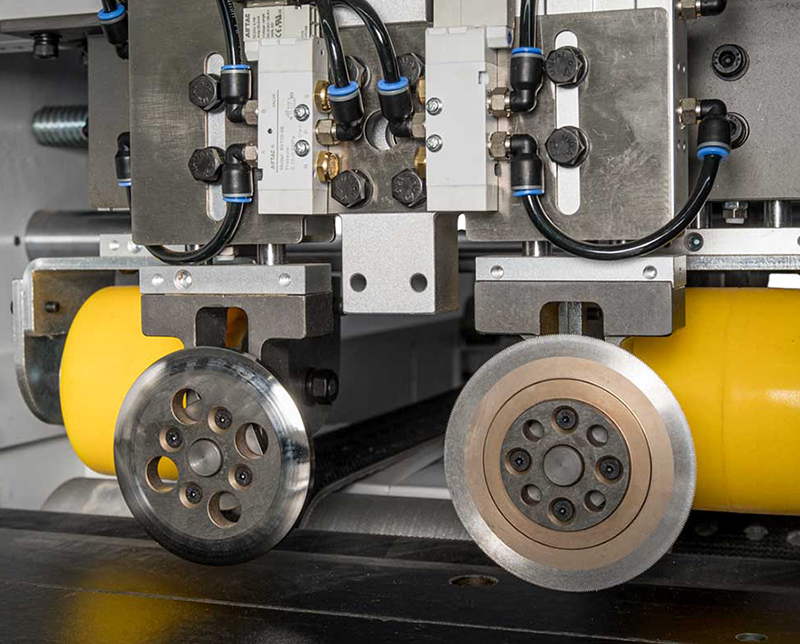

The transverse cutting and scoring unit consists of a pair of disk knives. It performs cutting and scoring of the future box in the transverse direction.

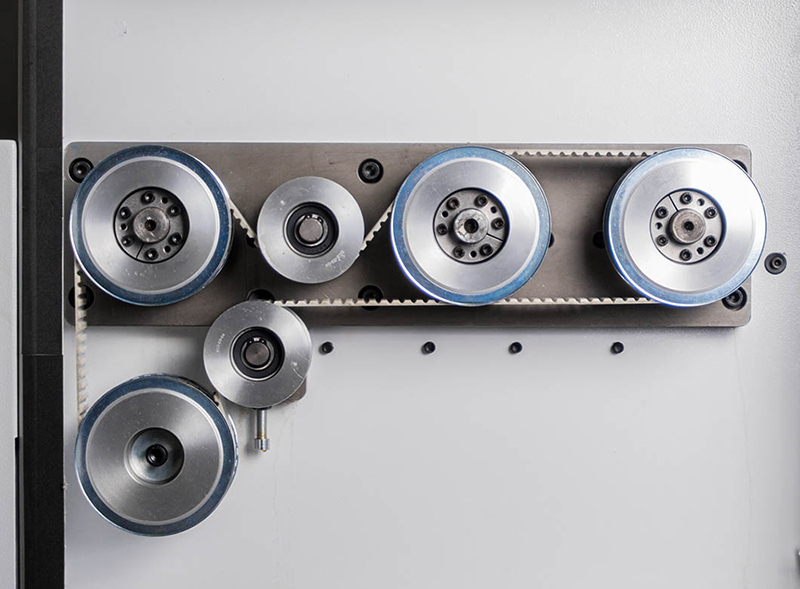

Belt drive of the knife and shaft system.

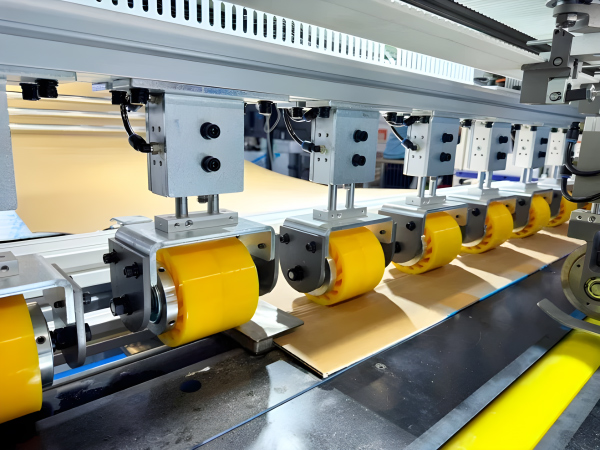

The pressure rollers securely fix the corrugated cardboard in the cutting area.

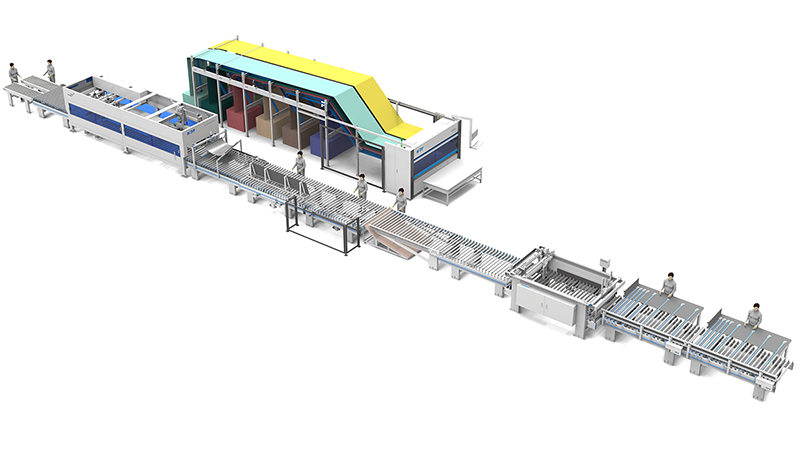

The machine can operate both separately and as part of a production line.
