Purpose

The KDT-6062 industrial-grade automatic drilling machine is used for drilling the necessary mounting holes in cabinet furniture parts in furniture factories and workshops.

Distinctive features

• High rigidity;
• Powerful, reliable drives;
• Drilling parts from three sides;
• Automatic feeding of blanks into the working area;
• Possibility to embed in the production line;
• Two options for unloading parts from the machine "back / forward";
• Industrial display with "Touch screen" system;
• Impeccable quality and precision processing;
• Fixation of drilling groups is carried out with the help of pneumatics;
• Digital counters on the drill groups allow quick and accurate changeover from one size to another;
• Possibility of rotation of the drilling group by 90 degrees.

Design advantages

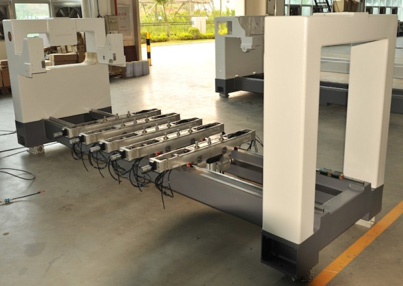

The machine bed is made of a profile with an enlarged section, which additionally gives rigidity to the structure and minimizes vibrations that occur during operation.

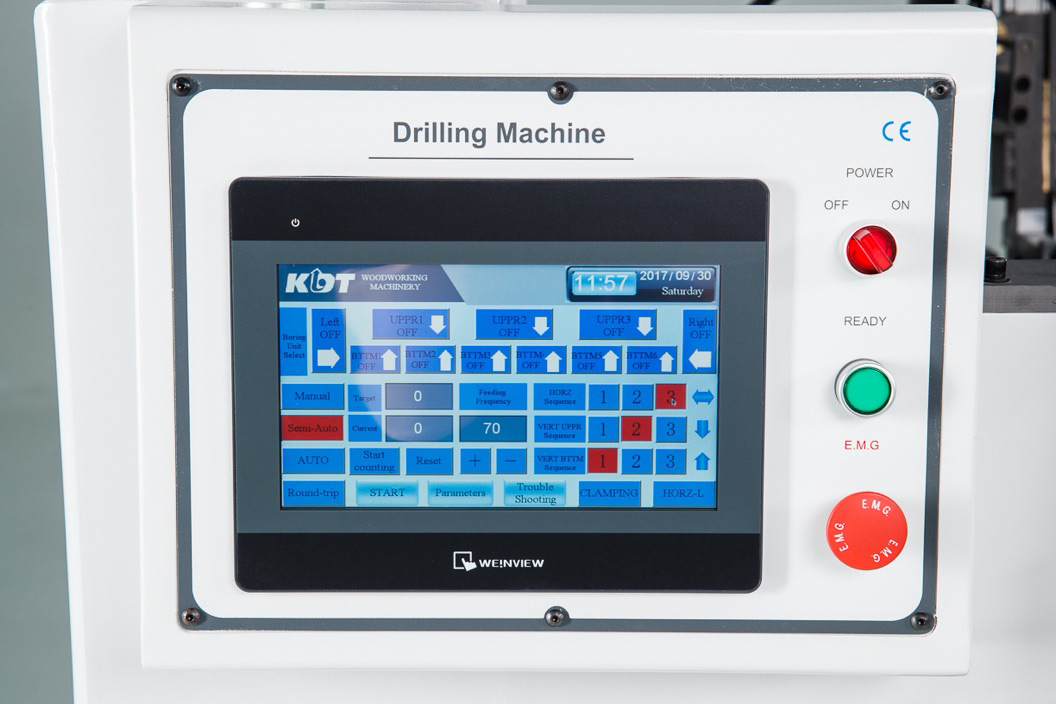

The machine is controlled using a special remote control equipped with an industrial display with a “Touch screen” system. The on/off icons of units and assemblies on the display are intuitive and do not require special skills to operate the machine.

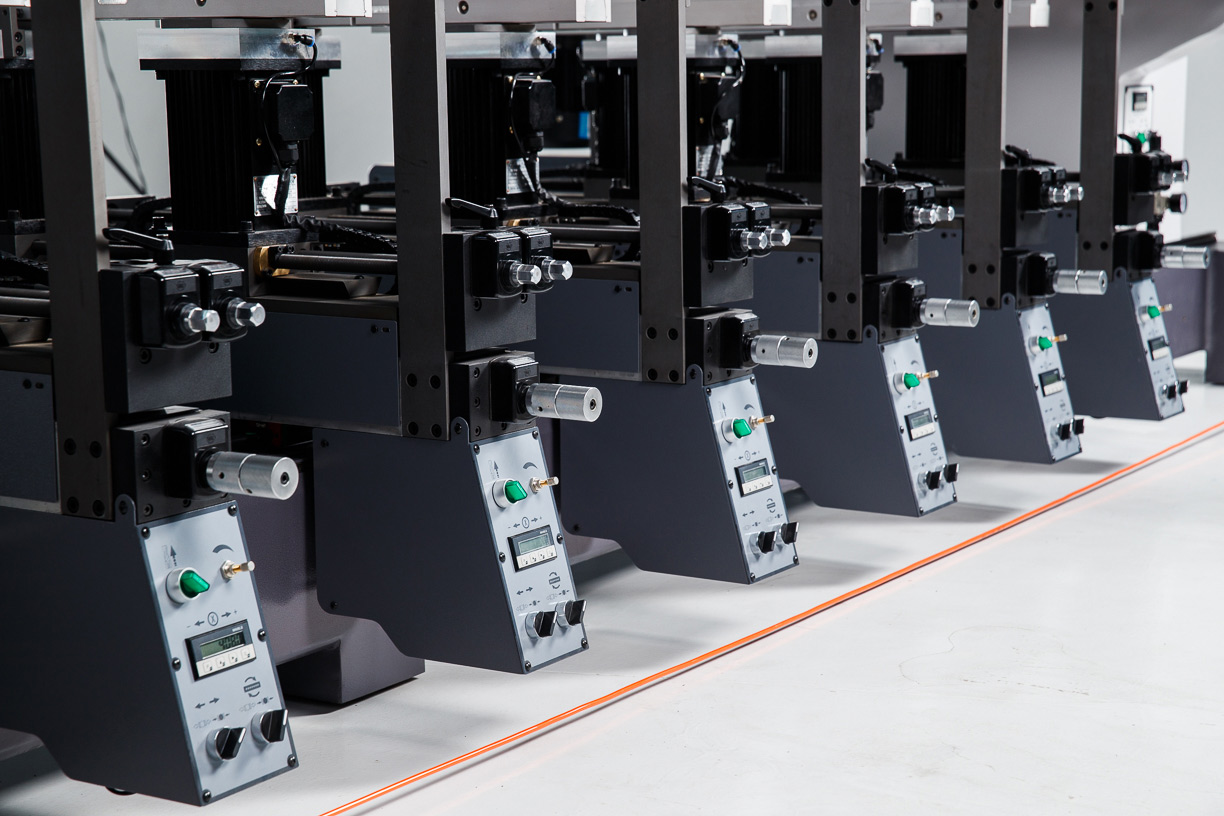

The machine is equipped with digital counters, which allows you to quickly change from one size to another. Pneumatic brakes securely fix the drilling traverses and guarantee stability and accuracy according to the additive chart.

The KDT-6062 machine has the following equipment:

• 2 horizontal end traverses with 21 spindles.
• 6 lower vertical traverses, double design with independent motors (11+11)x6. They have the ability to rotate 90 degrees.

On request, the machine can be manufactured in the following configurations: Lower vertical traverses in the amount from 1 to 8 x (11+11).

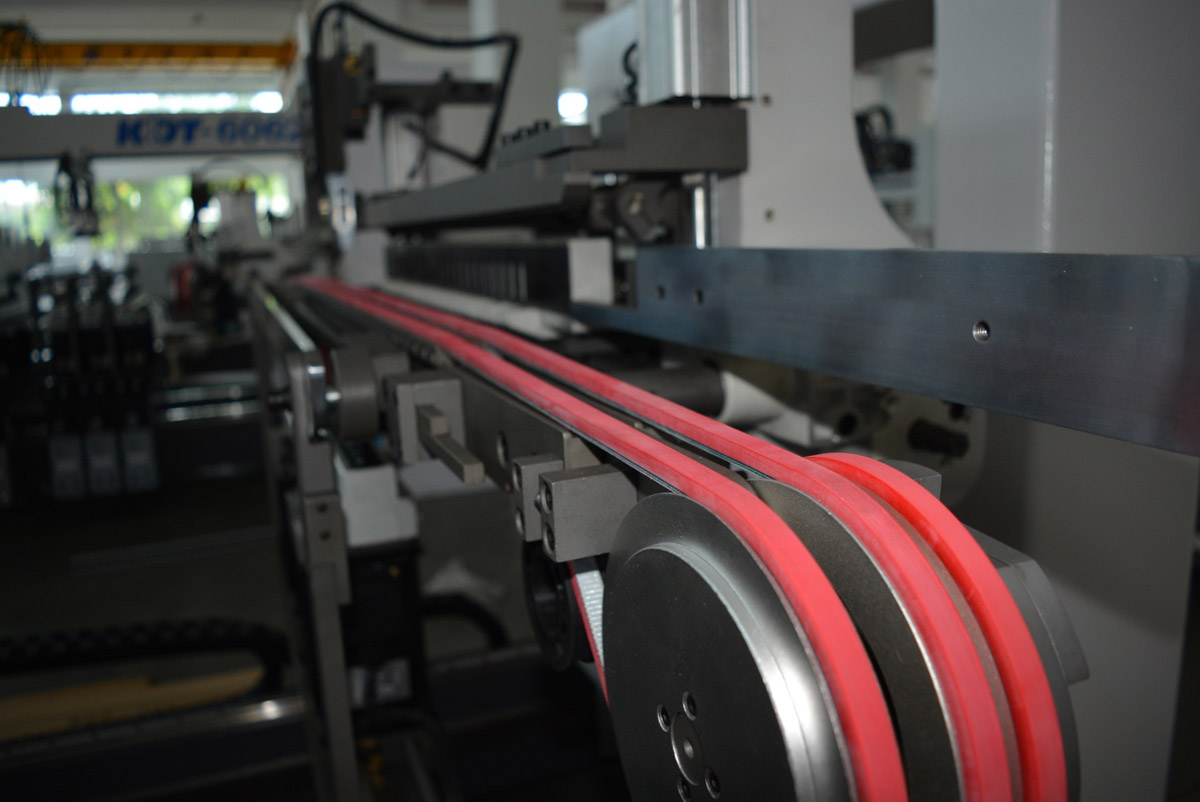

Automatic feeding of parts into the working area, ensures maximum productivity of the machine in mass production.

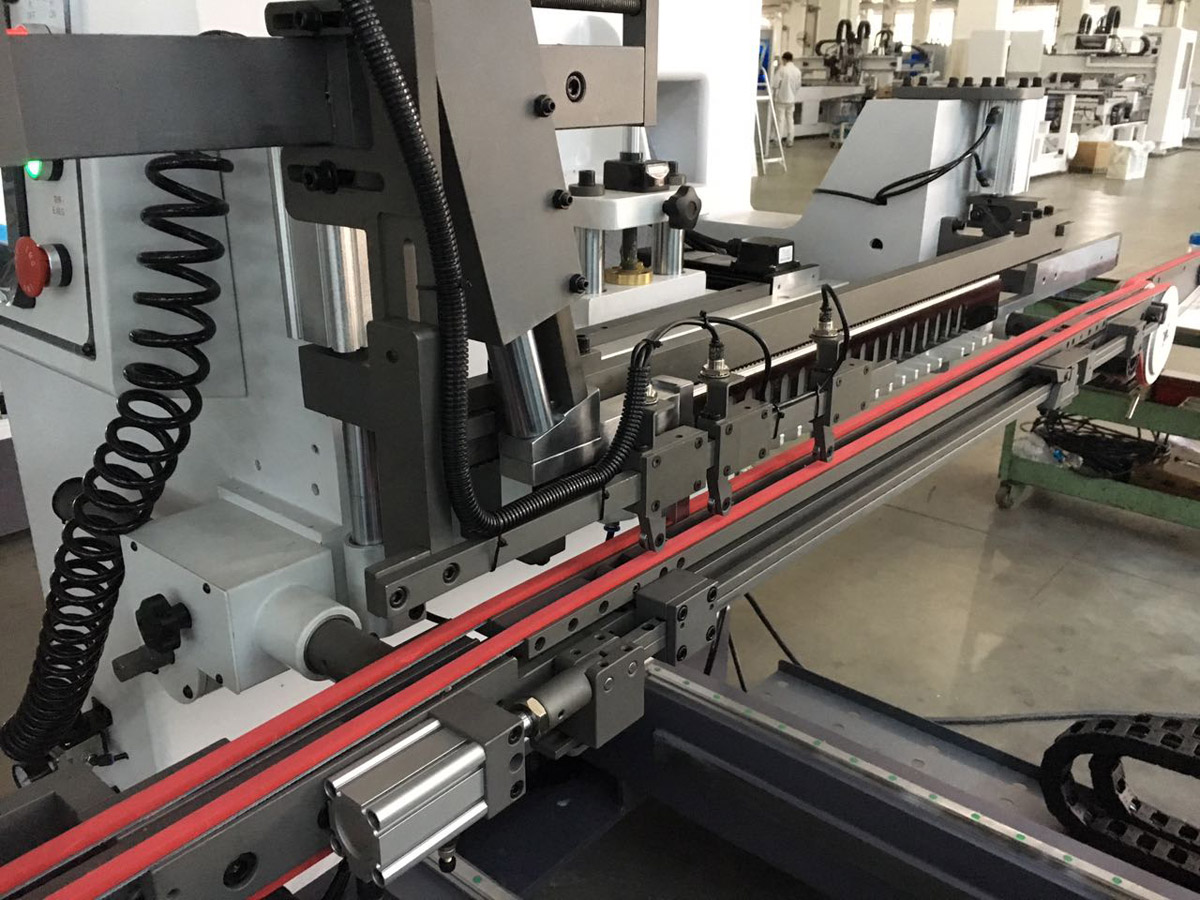

The machine can work in two modes:

• walk-through mode, two operators work.
• return mode, one operator works.

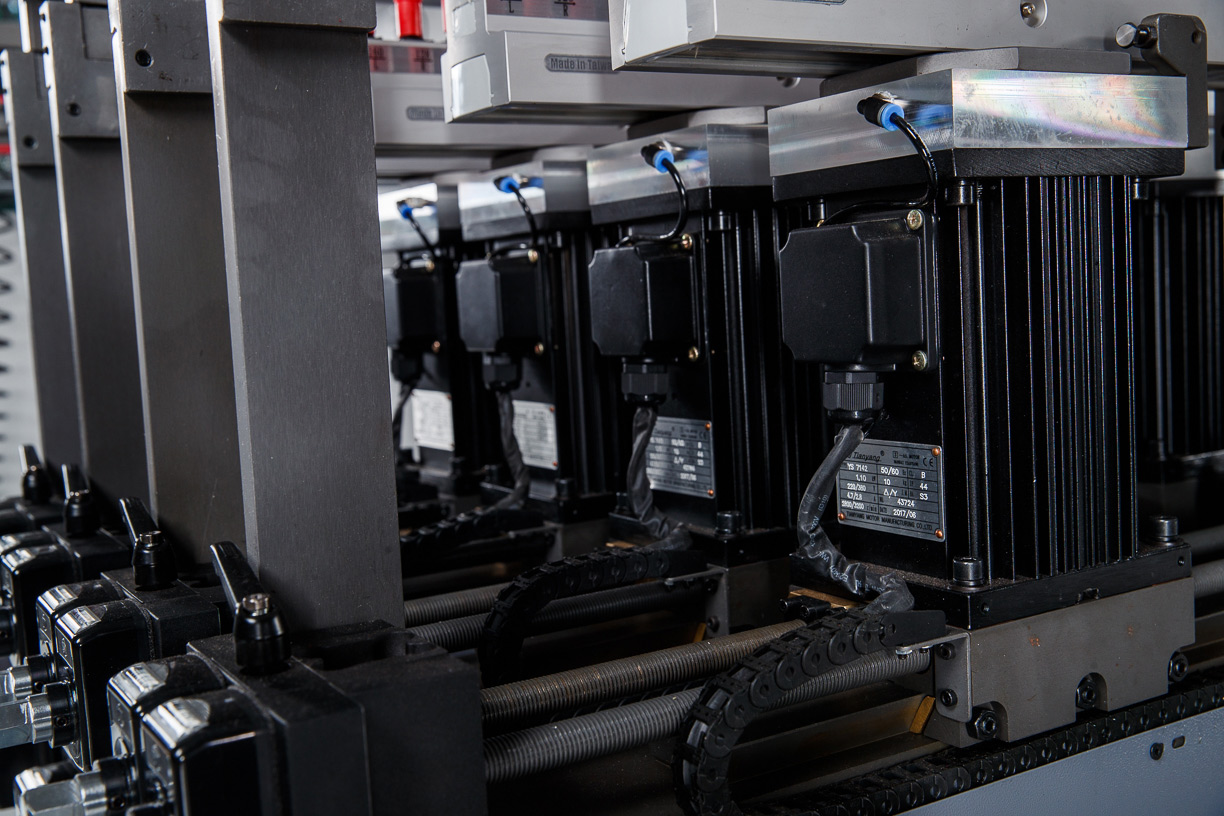

Powerful drilling traverse drives guarantee fast and precise insertion of required mounting holes in workpieces.
