Purpose

CNC machining center KHM-680 is designed for a fully automated process of formatting and milling a door leaf. The machine performs formatting of the door leaf from four sides to the required dimensions, as well as milling of the door leaf at the ends and the seam for the subsequent installation of door fittings: hinges, locks, keyholes and other door fittings. It can be integrated into an automatic line. It is used at large door enterprises during the serial production of doors. It is recommended to use the machine with an automatic feeding and unloading system.

Distinctive features

• PC control + handheld barcode scanner.
• Intelligent software for visual editing and processing, equipped with a standard library of door fittings.
• Massive frame for precise work with minimal vibrations.
• Automatic loading and unloading.
• Can operate as a separate solution with a loading and unloading system, or integrated into an automatic door manufacturing line.
• Automatic door leaf centering system using high-precision stops and vacuum modules.
• Automatic door panel thickness measurement.
• 90 degree rotary saw unit (5.5 kW + 1.5 kW).
• 9 kW vertical spindle with a tool changer for 12 tools.
• 90 degree horizontal dual-spindle drilling and milling unit (2x6 kW + 2x2.2 kW).
• Servo-driven conveyor, through-type feed and output.
• Automatic waste collection by belt.
• Optional! Automatic barcode scanner at the machine input.

Design advantages

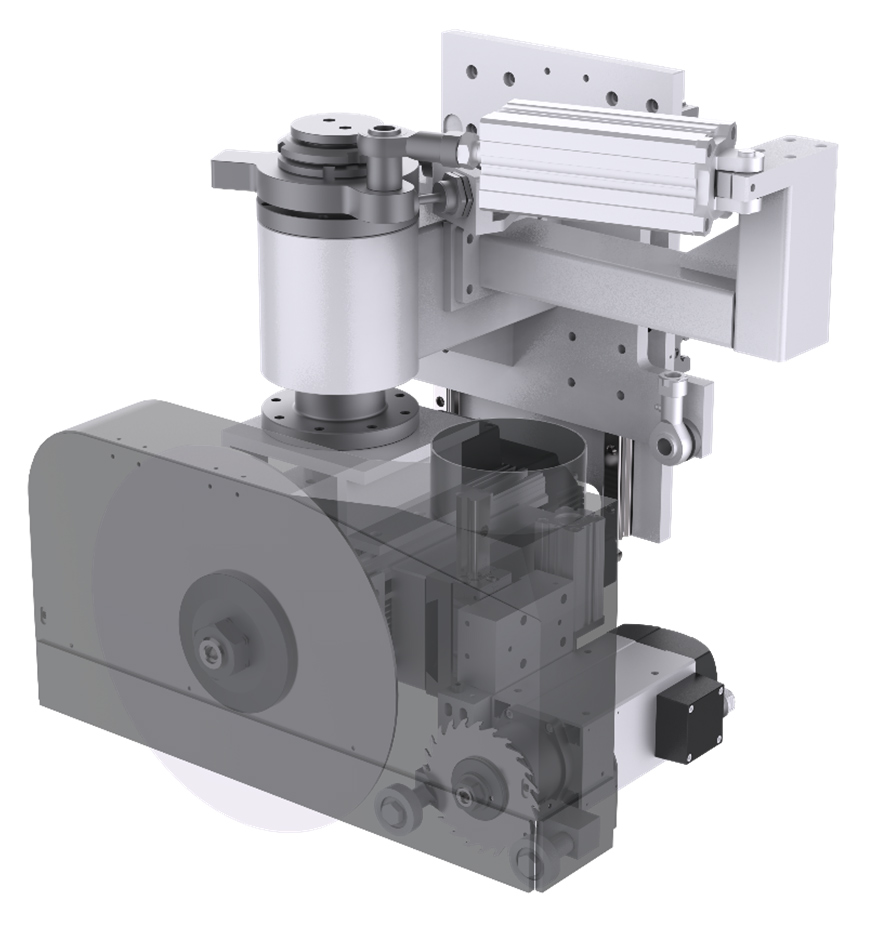

The 90-degree rotating saw unit has its own motors for the main (power 5.5 kW, disc size 350x30 mm) and the scoring (power 1.5 kW, disc size 120x22 mm) saws. The saw unit formats the door leaf from four sides. The unit also has an outlet for aspiration.

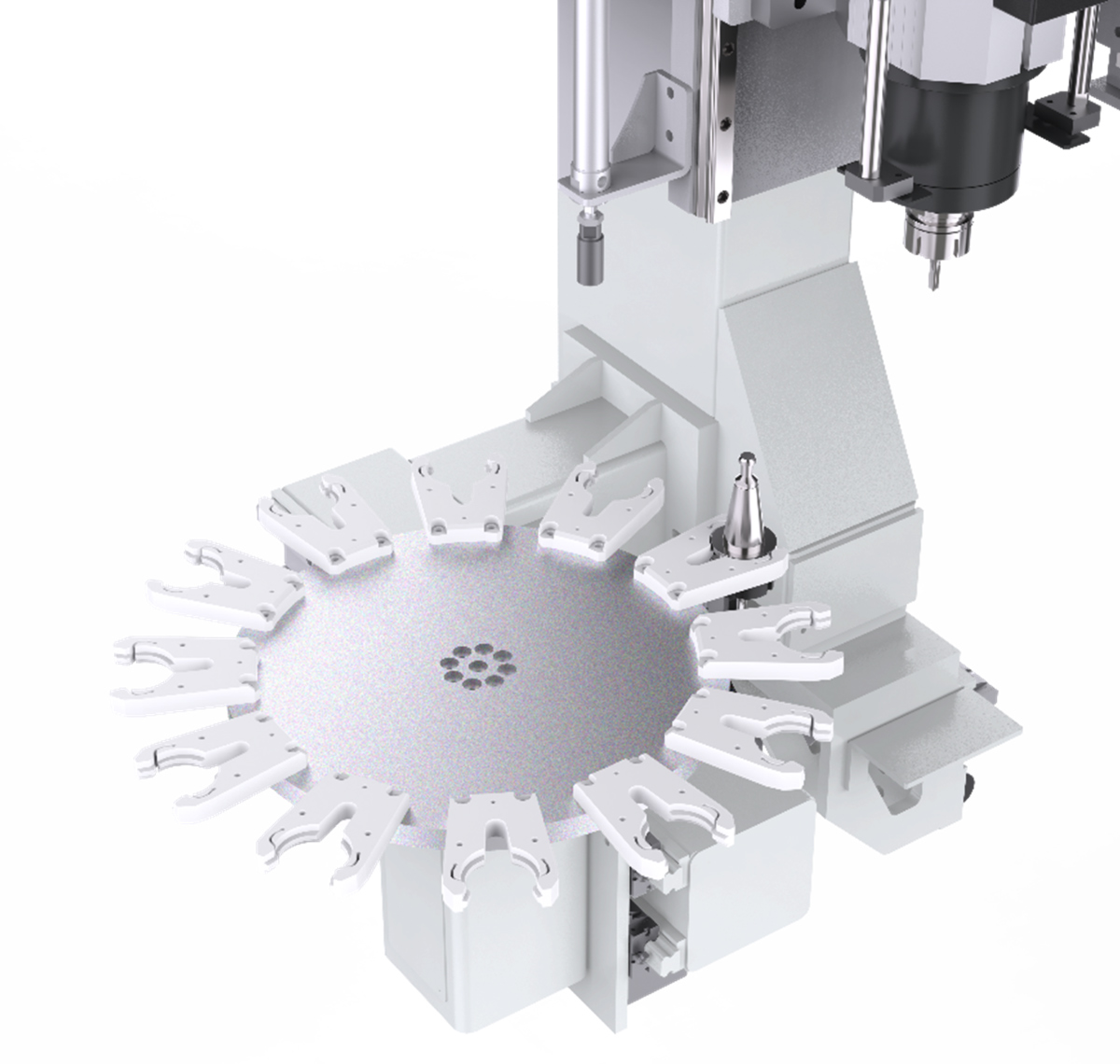

9 kW vertical spindle (ISO30) with 12 tool changer.

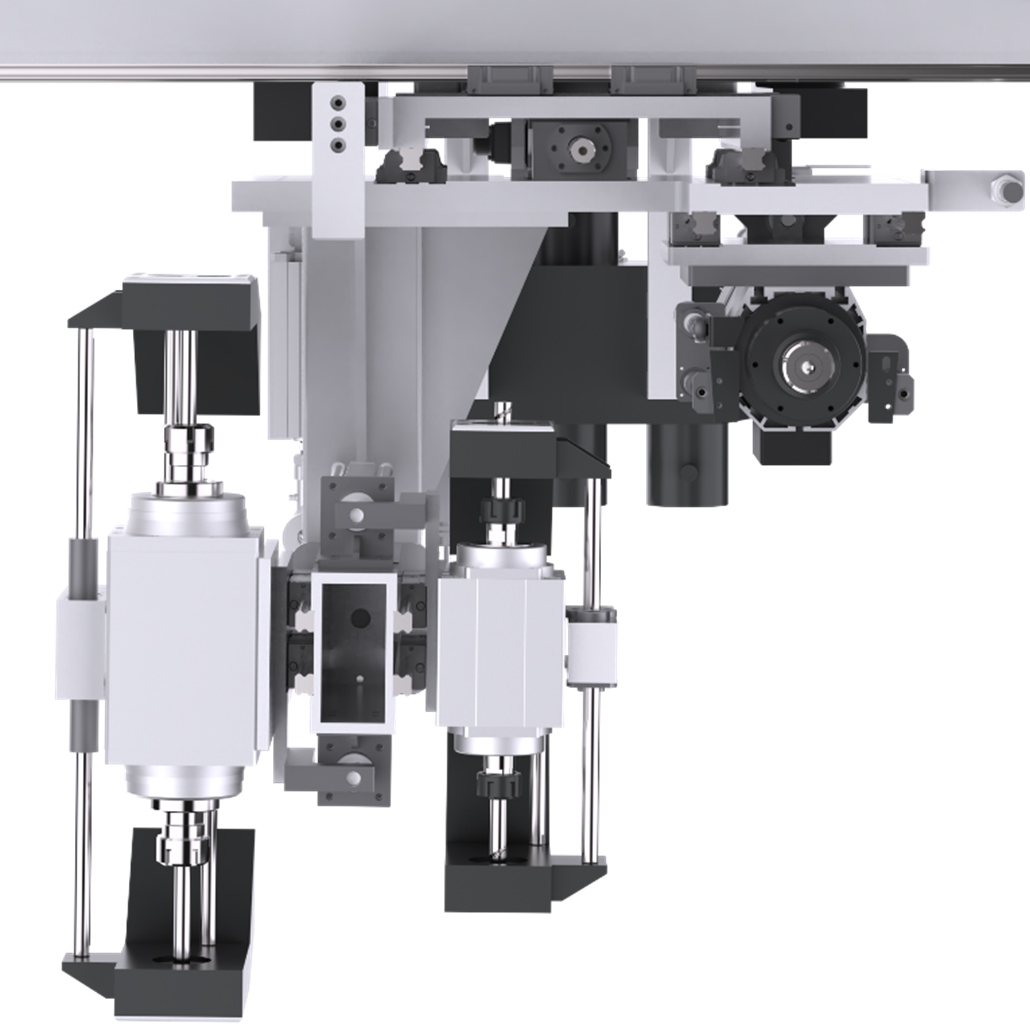

90-degree rotating horizontal two-spindle drilling and milling group – 2x6 kW (ER32) + 2x2.2 kW (ER25).

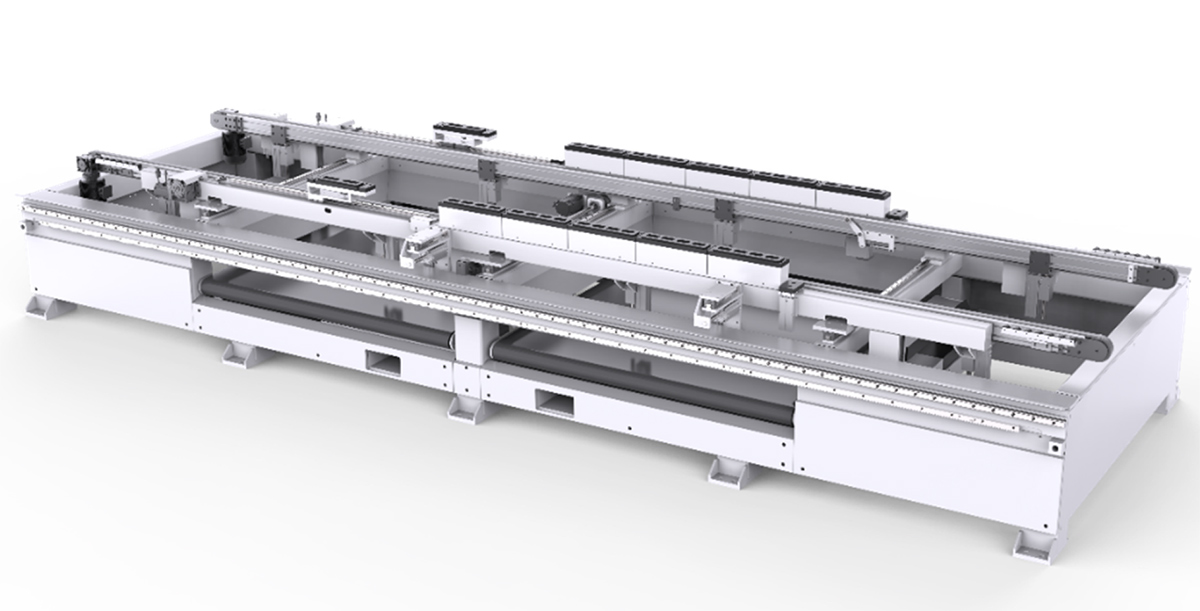

The powerful welded frame of the machine with minimal vibrations ensures precise work.

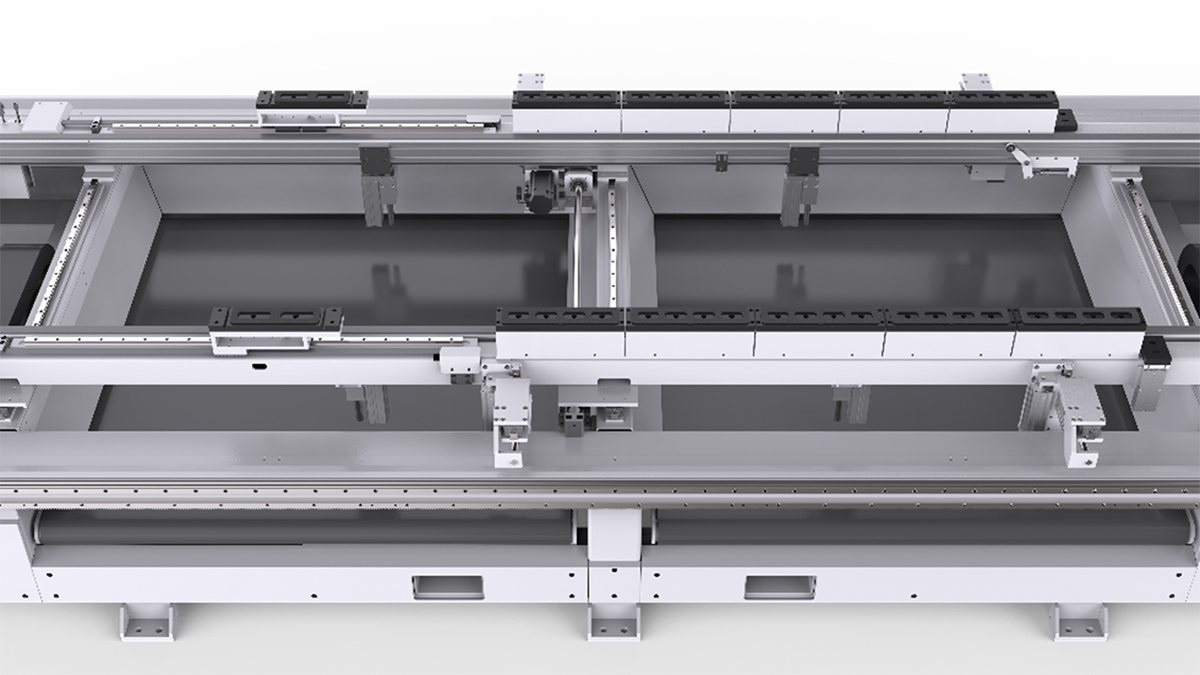

Automatic adjustment to the size of the door leaf in width and length. Vacuum suction cups securely fix the workpiece on the work table.

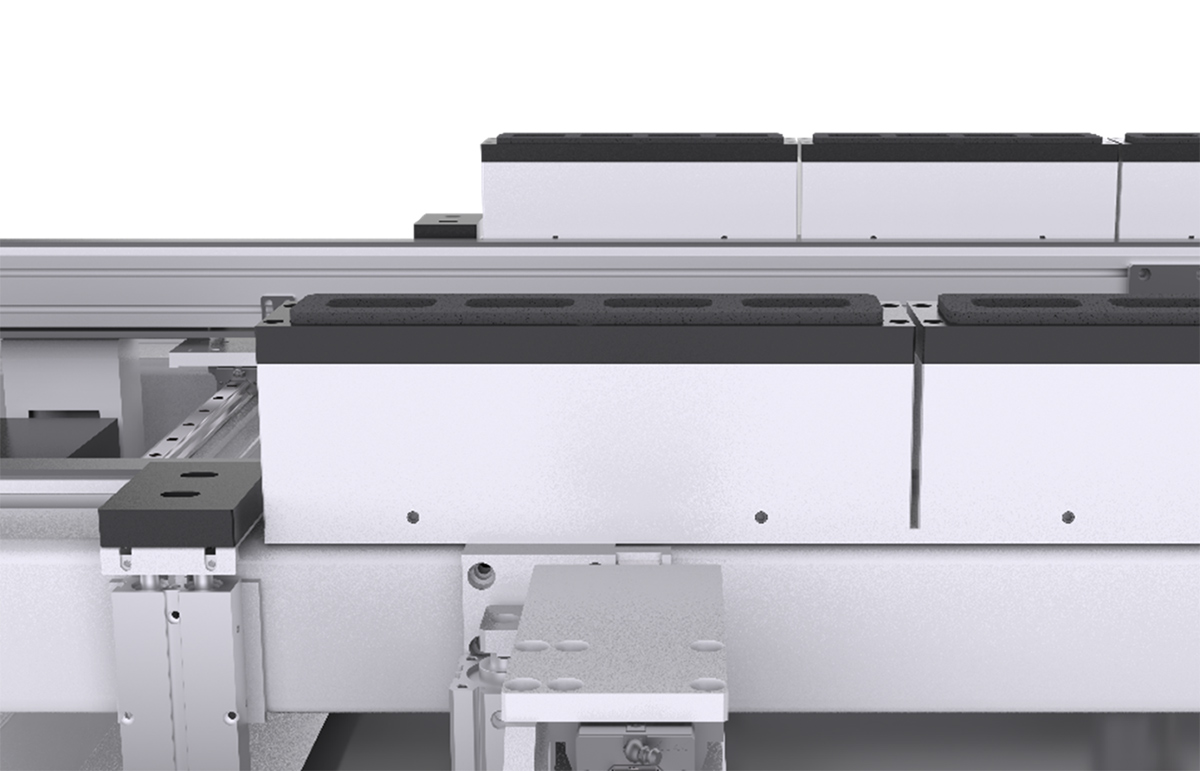

Removable combination panel for doors <1800 mm.

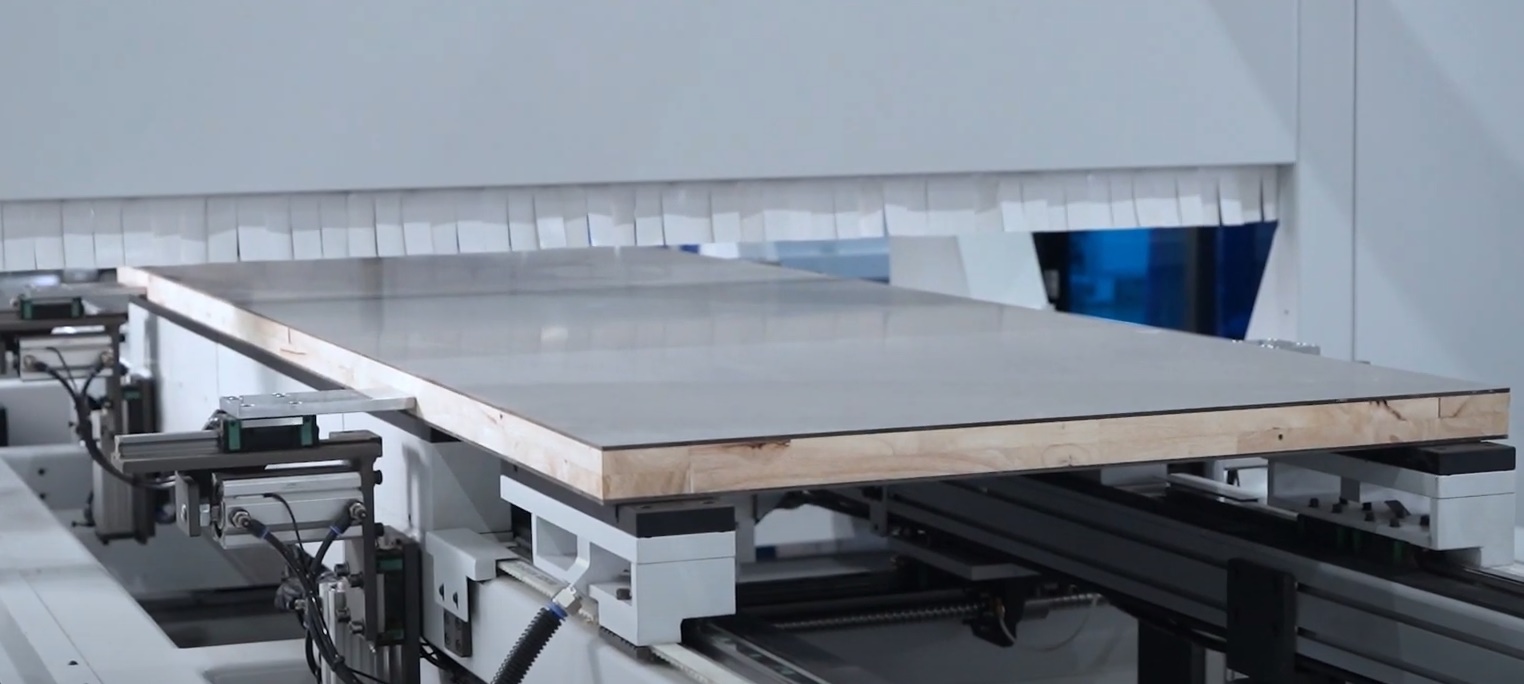

Positioned on both sides of the door panel.

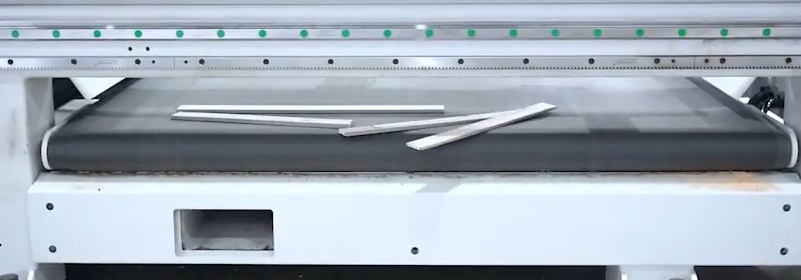

Automatic waste collection by conveyor belt.

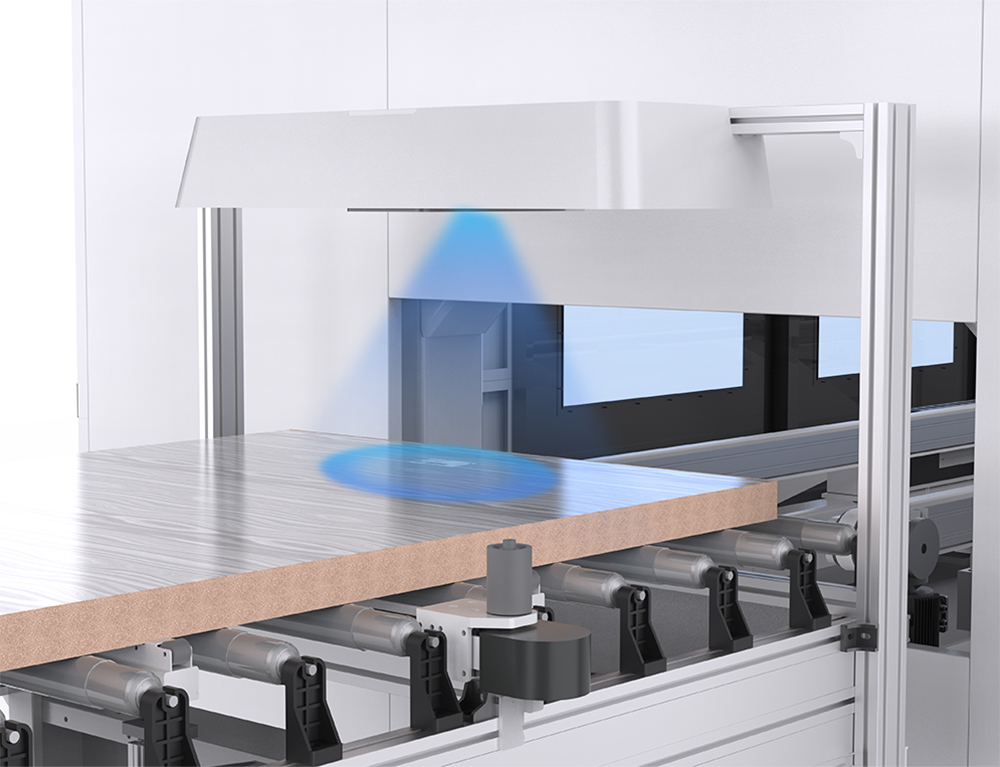

OPTIONAL! Barcode scanner.
