Purpose

CNC drilling center KD-612NH with two drilling groups at the top and bottom for drilling from 6 sides and a grooving saw (workpiece size 1200 * 2800 mm) is designed for high-precision drilling of through and blind holes in the ends and planes of furniture panels, which allows you to process any fmaps in one pass of the part. The machine is equipped with two milling units for milling both simple straight grooves, such as a groove for the back wall or the bottom of a box, and profiling.

Scheme of drilling groups

Distinctive features

• Ability to work with optimizer programs with drilling maps;
• High processing speed: 140/90/50 m/min;
• Grooving unit - saw 120 mm;
• Milling unit as standard;
• Drilling from 6 sides;
• Additive of small-sized details from 70*35 mm;
• Automatic lubrication of X and Y travel guides;
• Two options for unloading parts from the machine "back / forward";
• Automatic unloading table;
• Visualization of the processing of a double-sided additive map;
• Batch drilling mode is enabled;
• Scanner for reading the additive card by barcode.

Design advantages

CAD/CAM control panel, with the ability to read bar codes, which allows you to increase the productivity of the machine.

A barcode scanner is included in the basic equipment of the machine.

Drilling from 6 sides. There are 2 drilling groups installed on the machine: 10 - horizontal spindles, 22 - vertical spindles (13 - from above, 9 - from below). 2 milling units (5.5 kW + 3.5 kW) are installed as standard.

2 milling spindles 5.5 kW + 3.5 kW, 18000 rpm (top and bottom) for sawing straight and curved grooves.

Grooving unit with a saw (disk diameter 120 mm).

Batch drilling mode - processing of two parts at the same time with a mirror map.

Ability to work with all popular programs for optimizing drilling maps.

The machine bed was developed taking into account CAD programs, where the maximum allowable loads and requirements for the machine design were calculated and simulated. The welded frame is tempered to relieve all internal stresses in the material, then processing takes place on a five-axis metalworking machine, where all platforms and holes for mounting components and assemblies are milled.

Easy movement of parts on the table occurs due to the air flow supplied by a special electric fan through the holes in the upper part of the table, thereby eliminating the possible appearance of scratches on the lower surface of the part.

Two automatic clamps will allow you to securely fix the workpiece with a length of 70 mm. up to 2800 mm and perform fewer interceptions during drilling, which significantly increases the speed of the work cycle compared to machines with a single grip.

The powerful vertical clamp securely positions the workpiece. Works synchronously with the drilling unit.

Mobile plates in the drilling area allow for through milling.

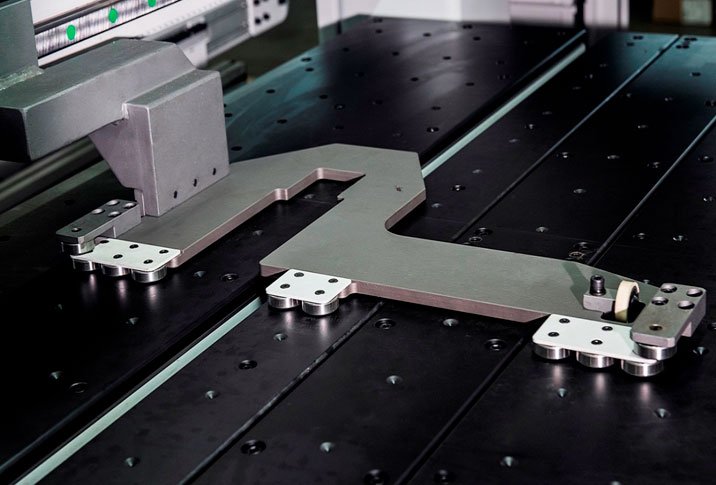

Lateral workpiece leveler.

Protecting the operator from injury.

Finished parts exit area with cross conveyor, equipped with workpiece detection sensor.

The minimum workpiece size is 70x35 mm, which allows for the addition of small-sized parts.

Sealed dust and moisture resistant cabinet with electronic components from the world's leading manufacturers is removed from the processing area, which prolongs the service life of electrical components and provides ease of maintenance.
